MKS4C034703C00KSSD | Wima
MKS film capacitor, 470 nF, ±10 %, 63 V (DC), PET, 10 mm, MKS4C034703C00KSSD
Order No.: 43D210
EAN: 4099879818348
MPN:
MKS4C034703C00KSSD
MKS 4 0.47µF/63VDC 10% RM10
Series: MKS 4
Unit Price (€ / pc.)
0.7616 € *
Available: 220 pcs.
Available in 4 Days: 6,779 pcs. - if ordered today
Total Price:
0.76 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7616 €
10 pcs.
0.4760 €
50 pcs.
0.3927 €
250 pcs.
0.3332 €
1000 pcs.
0.2832 €
*incl. VAT plus shipping costs
Subject to prior sale

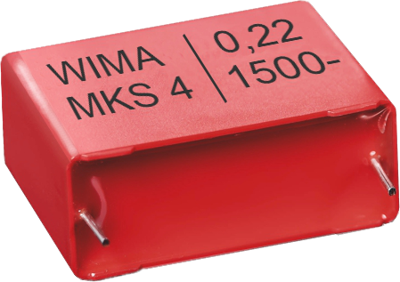

Film capacitor, MKS4C034703C00KSSD, WIMA
The MKS4C034703C00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10 mm | |
| Rated voltage (DC) | 63 V | |
| max. operating temperature | 125 °C | |
| Number of pins | 2 | |
| Rated voltage (AC) | 40 V | |
| Tolerance | ±10 % | |

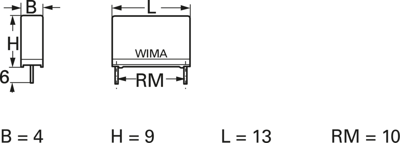

| Length | 13 mm | |
| Capacity | 470 nF | |
| Dielectric material | PET | |
| Height | 9 mm | |
| Width | 4 mm | |
| min. operating temperature | -55 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bulk with 3,000 pieces |
| Customs tariff number | 85322500 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
