MKS4C034702C00MSSD | Wima
MKS film capacitor, 470 nF, ±20 %, 63 V (DC), PET, 7.5 mm, MKS4C034702C00MSSD
Unit Price (€ / pc.)
0.2428 € *
Available in 4 Days: 3,766 pcs. - if ordered today
Film capacitor, MKS4C034702C00MSSD, WIMA
The MKS4C034702C00MSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| Grid | 7.5 mm | |
| Tolerance | ±20 % | |
| Rated voltage (DC) | 63 V | |
| max. operating temperature | 125 °C | |

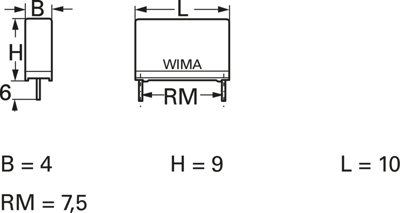

| Width | 4 mm | |
| Capacity | 470 nF | |
| Dielectric material | PET | |
| Rated voltage (AC) | 40 V | |
| Length | 10 mm | |
| Number of pins | 2 | |
| Height | 9 mm | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
