MKS0C033300D00KSSD | Wima
MKS film capacitor, 330 nF, ±10 %, 63 V (DC), PET, 2.5 mm, MKS0C033300D00KSSD
Unit Price (€ / pc.)
1.2138 € *
Available: 116 pcs.
Available in 4 Days: 3,800 pcs. - if ordered today
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2138 €
10 pcs.
0.7616 €
50 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKS0C033300D00KSSD, WIMA
The MKS0C033300D00KSSD is a miniature capacitor. This product is contacted at the end surfaces and have very low self-inductance due to the small pin spacing of the capacitor and its fully contacted electrodes, the pulse and current loading capacities basically increase, the smaller the Pitch can be designed, because - provided that the thickness of the film is the same - a longer band length is needed to achieve a particular capacitance value.
Features
- High volume/capacitance ratio and reduced base
- Pitch 2.5 mm
- Self-healing
- Vacuum-deposited
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

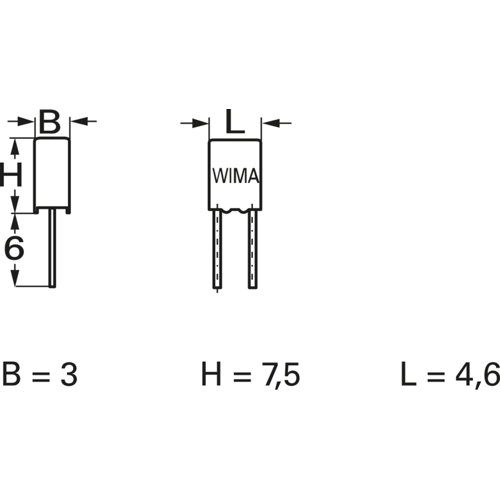

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 3.8 mm | |
| Number of pins | 2 | |
| Tolerance | ±10 % | |
| Capacity | 330 nF | |
| Rated voltage (DC) | 63 V | |
| Grid | 2.5 mm | |
| Rated voltage (AC) | 40 V | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Design | radial | |
| Height | 8.5 mm | |
| Length | 4.6 mm | |
| Dielectric material | PET |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 5,000 pieces |
| Country of origin | DE |
| Customs tariff number | 85322500 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
