MKS0C021000B00KN00 | Wima

MKS film capacitor, 10 nF, ±10 %, 63 V (DC), PET, 2.5 mm, MKS0C021000B00KN00

Order No.: 48D7133
EAN: 4099879855909
MPN:
MKS0C021000B00KN00
MKS 02 0.01 µF 63 VDC
Series: MKS 02

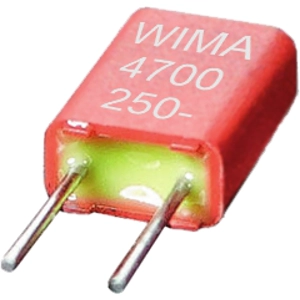

MKS0C021000B00KN00 Wima Film Capacitors Image 1
MKS0C021000B00KN00 Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.357 € *
Available in 4 Days: 4,400 pcs. - if ordered today
Total Price:
785.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
2200 pcs.
0.357 €

Film capacitor, MKS0C021000B00KN00, WIMA

The MKS0C021000B00KN00 is a miniature capacitor. This product is contacted at the end surfaces and have very low self-inductance due to the small pin spacing of the capacitor and its fully contacted electrodes, the pulse and current loading capacities basically increase, the smaller the Pitch can be designed, because - provided that the thickness of the film is the same - a longer band length is needed to achieve a particular capacitance value.

Features

  • High volume/capacitance ratio and reduced base
  • Pitch 2.5 mm
  • Self-healing
  • Vacuum-deposited
  • Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing
Technical specifications
Filter Property Value
Grid 2.5 mm
Tolerance ±10 %
Width 2.5 mm
max. operating temperature 105 °C
Dielectric material PET
Rated voltage (DC) 63 V
Length 4.6 mm
Height 7 mm
Design radial
Number of pins 2
Rated voltage (AC) 40 V
min. operating temperature -55 °C
Capacity 10 nF
Logistics
Property Value
Customs tariff number 85322500
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
