MKS0C016800B00KSSD | Wima
MKS film capacitor, 6.8 nF, ±5 %, 250 V (DC), PET, 2.5 mm, MKS0C016800B00KSSD
Order No.: 42D130
EAN: 4099879816481
MPN:
MKS0C016800B00KSSD
MKS 02 6800PF/250VDC 10% RM2.5
Series: MKS 02
Unit Price (€ / pc.)
0.9877 € *
Available: 1,250 pcs.
Available in 4 Days: 255 pcs. - if ordered today
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.6188 €
50 pcs.
0.4879 €
250 pcs.
0.4165 €
1000 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKS0C016800B00KSSD, WIMA
The MKS0C016800B00KSSD is a miniature capacitor. This product is contacted at the end surfaces and have very low self-inductance due to the small pin spacing of the capacitor and its fully contacted electrodes, the pulse and current loading capacities basically increase, the smaller the Pitch can be designed, because - provided that the thickness of the film is the same - a longer band length is needed to achieve a particular capacitance value.
Features
- High volume/capacitance ratio and reduced base
- Pitch 2.5 mm
- Self-healing
- Vacuum-deposited
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

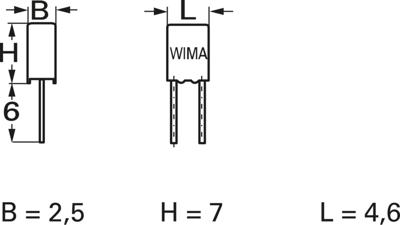

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | radial | |
| Length | 4.6 mm | |
| Number of pins | 2 | |
| Capacity | 6.8 nF | |
| Rated voltage (AC) | 160 V | |
| Rated voltage (DC) | 250 V | |
| Grid | 2.5 mm | |
| Dielectric material | PET | |
| max. operating temperature | 105 °C | |
| Tolerance | ±5 % | |
| min. operating temperature | -55 °C | |
| Width | 2.5 mm | |
| Height | 7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
