MKP4O126805B00MSSD | Wima

MKP film capacitor, 68 nF, ±20 %, 1 kV (DC), PP, 22.5 mm, MKP4O126805B00MSSD

Order No.: 48D5262
EAN: 4099879855862
MPN:
MKP4O126805B00MSSD
MKP 4 0.068 µF 1000 VDC
Series: MKP 4
MKP4O126805B00MSSD Wima Film Capacitors Image 1
MKP4O126805B00MSSD Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Available in 4 Days: 16,632 pcs. - if ordered today
Total Price:
95.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
0.4760 €

Film capacitor, MKP4O126805B00MSSD, WIMA

The MKP4O126805B00MSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.

Features

  • High volume/capacitance ratio
  • Self-healing
  • Very low dissipation factor
  • Negative capacitance change versus temperature
  • Very low dielectric absorption

Applications

  • Sample and hold
  • Timing
  • Oscillating circuits
  • High frequency coupling and decoupling
Technical specifications
Filter Property Value
Rated voltage (AC) 400 V
Rated voltage (DC) 1 kV
Capacity 68 nF

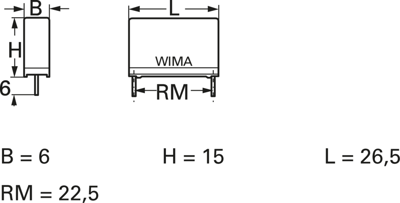

Length 26.5 mm
Width 6 mm
Design radial
Number of pins 2
Grid 22.5 mm
max. operating temperature 105 °C
Height 15 mm
min. operating temperature -55 °C
Tolerance ±20 %
Dielectric material PP
Logistics
Property Value
Customs tariff number 85322500
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
