MKP4O121503F00KSSD | Wima
MKP film capacitor, 15 nF, ±10 %, 1 kV (DC), PP, 10 mm, MKP4O121503F00KSSD
Unit Price (€ / pc.)
0.2130 € *
Available: 177 pcs.
Available in 4 Days: 5,100 pcs. - if ordered today
Film capacitor, MKP4O121503F00KSSD, WIMA
The MKP4O121503F00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| Capacity | 15 nF | |
| Dielectric material | PP | |
| max. operating temperature | 105 °C | |

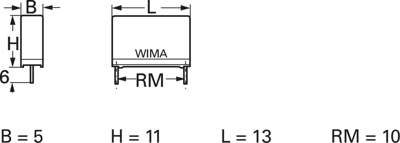

| Design | radial | |
| Width | 5 mm | |
| Tolerance | ±10 % | |
| Rated voltage (DC) | 1 kV | |
| Height | 11 mm | |
| Rated voltage (AC) | 400 V | |
| Length | 13 mm | |
| Grid | 10 mm | |
| Number of pins | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
