MKP4G036805F00KSSD | Wima
MKP film capacitor, 680 nF, ±10 %, 400 V (DC), PP, 22.5 mm, MKP4G036805F00KSSD
Order No.: 43D5924
EAN: 4099879818928
MPN:
MKP4G036805F00KSSD
MKP 4 0.68µF/400VDC 10% RM22.5
Series: MKP 4
Unit Price (€ / pc.)
3.2606 € *
Available: 246 pcs.
Total Price:
3.26 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2606 €
10 pcs.
2.8560 €
100 pcs.
2.5109 €
500 pcs.
2.3205 €
1000 pcs.
2.2253 €
*incl. VAT plus shipping costs
Subject to prior sale

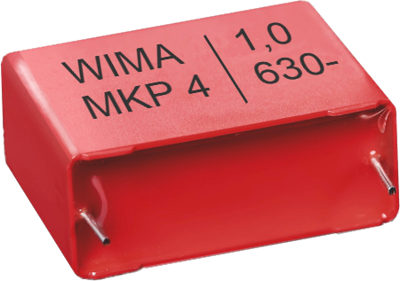

Film capacitor, MKP4G036805F00KSSD, WIMA
The MKP4G036805F00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling

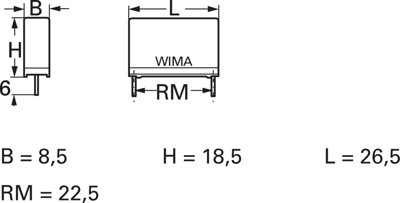

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 8.5 mm | |
| Rated voltage (AC) | 220 V | |
| Rated voltage (DC) | 400 V | |
| Number of pins | 2 | |
| Length | 26.5 mm | |
| Design | radial | |
| Dielectric material | PP | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Height | 18.5 mm | |
| Capacity | 680 nF | |
| Tolerance | ±10 % | |
| Grid | 22.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322500 |
| Original Packaging | Bulk with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
