MKP4G034705D00KSSD | Wima
MKP film capacitor, 470 nF, ±10 %, 400 V (DC), PP, 22.5 mm, MKP4G034705D00KSSD
Order No.: 43D5923
EAN: 4099879818911
MPN:
MKP4G034705D00KSSD
MKP 4 0.47µF/400VDC 10% RM22.5
Series: MKP 4
Unit Price (€ / pc.)
1.9278 € *
Available: 389 pcs.
Available in 4 Days: 2,601 pcs. - if ordered today
Total Price:
1.93 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9278 €
10 pcs.
1.2019 €
50 pcs.
1.0591 €
250 pcs.
0.9163 €
760 pcs.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale

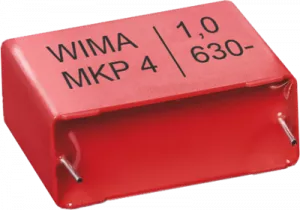

Film capacitor, MKP4G034705D00KSSD, WIMA
The MKP4G034705D00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling

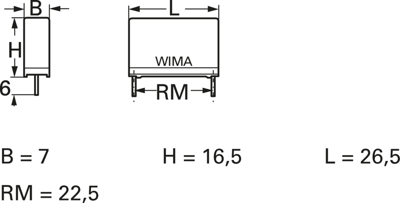

Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 105 °C | |
| Dielectric material | PP | |
| Rated voltage (DC) | 400 V | |
| Grid | 22.5 mm | |
| Width | 7 mm | |
| Capacity | 470 nF | |
| Number of pins | 2 | |
| Rated voltage (AC) | 220 V | |
| Height | 16.5 mm | |
| Tolerance | ±10 % | |
| min. operating temperature | -55 °C | |
| Design | radial | |
| Length | 26.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322500 |
| Original Packaging | Bulk with 760 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
