MKP4G031004B00KSSD | Wima
MKP film capacitor, 100 nF, ±10 %, 400 V (DC), PP, 15 mm, MKP4G031004B00KSSD
Order No.: 43D5919
EAN: 4099879818898
MPN:
MKP4G031004B00KSSD
MKP 4 0.1µF/400VDC 10% RM15
Series: MKP 4
Unit Price (€ / pc.)
0.7854 € *
Available: 2,376 pcs.
Available in 4 Days: 2,643 pcs. - if ordered today
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7854 €
10 pcs.
0.4879 €
50 pcs.
0.3927 €
250 pcs.
0.3332 €
1000 pcs.
0.2880 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKP4G031004B00KSSD, WIMA
The MKP4G031004B00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling
Technical specifications

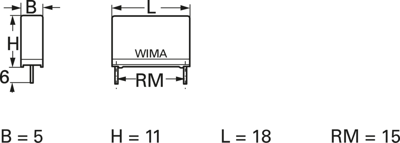

| Filter | Property | Value |
|---|---|---|
| Number of pins | 2 | |
| max. operating temperature | 105 °C | |
| Width | 5 mm | |
| Rated voltage (DC) | 400 V | |
| Rated voltage (AC) | 220 V | |
| Height | 11 mm | |
| Design | radial | |
| Tolerance | ±10 % | |
| min. operating temperature | -55 °C | |
| Capacity | 100 nF | |
| Length | 18 mm | |
| Dielectric material | PP | |
| Grid | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 2,400 pieces |
| Country of origin | DE |
| Customs tariff number | 85322500 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
