MKP4F041005D00KSSD | Wima
MKP film capacitor, 1 µF, ±10 %, 250 V (DC), PP, 22.5 mm, MKP4F041005D00KSSD
Order No.: 43D5889
EAN: 4099879818843
MPN:
MKP4F041005D00KSSD
MKP 4 1.0µF/250VDC 10% RM22.5
Series: MKP 4
Unit Price (€ / pc.)
2.7013 € *
Available: 218 pcs.
Available in 4 Days: 715 pcs. - if ordered today
Total Price:
2.70 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7013 €
10 pcs.
1.6898 €
50 pcs.
1.4875 €
250 pcs.
1.2852 €
760 pcs.
1.1662 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKP4F041005D00KSSD, WIMA
The MKP4F041005D00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling

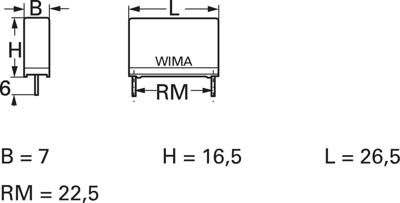

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 22.5 mm | |
| Tolerance | ±10 % | |
| Width | 7 mm | |
| max. operating temperature | 105 °C | |
| Dielectric material | PP | |
| Rated voltage (DC) | 250 V | |
| Length | 26.5 mm | |
| Height | 16.5 mm | |
| Design | radial | |
| Number of pins | 2 | |
| Rated voltage (AC) | 160 V | |
| min. operating temperature | -55 °C | |
| Capacity | 1 µF |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 760 pieces |
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
