MKP4F033304C00KSSD | Wima
MKP film capacitor, 330 nF, ±10 %, 250 V (DC), PP, 15 mm, MKP4F033304C00KSSD
Order No.: 43D5886
EAN: 4099879818812
MPN:
MKP4F033304C00KSSD
MKP 4 0.33µF/250VDC 10% RM15
Series: MKP 4
Unit Price (€ / pc.)
1.1186 € *
Available: 1,759 pcs.
Available in 4 Days: 2,798 pcs. - if ordered today
Total Price:
1.12 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1186 €
10 pcs.
0.7021 €
50 pcs.
0.6188 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKP4F033304C00KSSD, WIMA
The MKP4F033304C00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling
Technical specifications

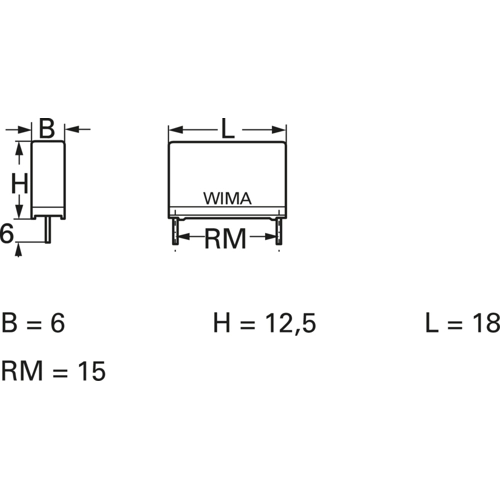

| max. operating temperature | 105 °C | |
| Grid | 15 mm | |
| Tolerance | ±10 % | |
| Height | 12.5 mm | |
| min. operating temperature | -55 °C | |
| Number of pins | 2 | |
| Capacity | 330 nF | |
| Length | 18 mm | |
| Design | radial | |
| Rated voltage (AC) | 160 V | |
| Width | 6 mm | |
| Rated voltage (DC) | 250 V | |
| Dielectric material | PP |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322500 |
| Original Packaging | Bulk with 2,000 pieces |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
