MKP4F032204B00KSSD | Wima
MKP film capacitor, 220 nF, ±10 %, 250 V (DC), PP, 15 mm, MKP4F032204B00KSSD
Order No.: 43D5885
EAN: 4099879818805
MPN:
MKP4F032204B00KSSD
MKP 4 0.22µF/250VDC 10% RM15
Series: MKP 4
Unit Price (€ / pc.)
0.9163 € *
Available: 44 pcs.
Available in 4 Days: 3,609 pcs. - if ordered today
Total Price:
0.92 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9163 €
10 pcs.
0.5712 €
50 pcs.
0.4641 €
250 pcs.
0.3927 €
1000 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKP4F032204B00KSSD, WIMA
The MKP4F032204B00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling

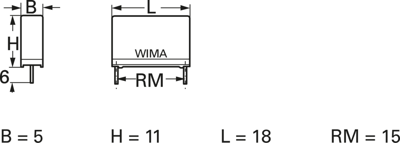

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 250 V | |
| Rated voltage (AC) | 160 V | |
| Tolerance | ±10 % | |
| Design | radial | |
| Width | 5 mm | |
| Height | 11 mm | |
| Dielectric material | PP | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Number of pins | 2 | |
| Length | 18 mm | |
| Capacity | 220 nF | |
| Grid | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
| Original Packaging | Bulk with 2,400 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
