MKP4F031003C00KSSD | Wima
MKP film capacitor, 100 nF, ±10 %, 250 V (DC), PP, 10 mm, MKP4F031003C00KSSD
Order No.: 43D5883
EAN: 4099879818799
MPN:
MKP4F031003C00KSSD
MKP 4 0.1µF/250VDC 10% RM10
Series: MKP 4
Unit Price (€ / pc.)
0.6902 € *
Available: 193 pcs.
Available in 4 Days: 3,099 pcs. - if ordered today
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6902 €
10 pcs.
0.4284 €
50 pcs.
0.3570 €
250 pcs.
0.2963 €
1000 pcs.
0.2547 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKP4F031003C00KSSD, WIMA
The MKP4F031003C00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling

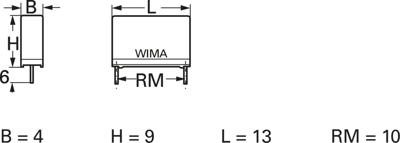

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10 mm | |
| Tolerance | ±10 % | |
| Width | 4 mm | |
| max. operating temperature | 105 °C | |
| Dielectric material | PP | |
| Rated voltage (DC) | 250 V | |
| Length | 13 mm | |
| Height | 9 mm | |
| Design | radial | |
| Number of pins | 2 | |
| Rated voltage (AC) | 160 V | |
| min. operating temperature | -55 °C | |
| Capacity | 100 nF |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 3,000 pieces |
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
