MKP1V022205I00JD00 | Wima
MKP film capacitor, 22 nF, ±5 %, 2.5 kV (DC), PP, 22.5 mm, MKP1V022205I00JD00
Order No.: 47D9477
EAN: 4099879855718
MPN:
MKP1V022205I00JD00
MKP 10 0.022 µF 2500 VDC
Series: MKP 10
Unit Price (€ / pc.)
3.2963 € *
Standard delivery time from the manufacturer is: On Request

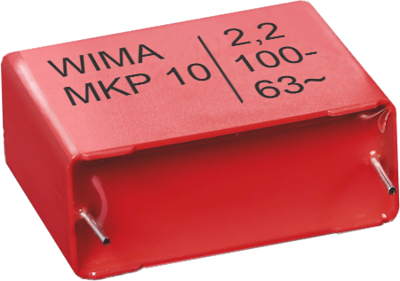

Film capacitor, MKP1V022205I00JD00, WIMA
The MKP1V022205I00JD00 is a pulse capacitor that consists of a non-metallized dielectric film and an carrier film metallized on both sides acting as electrode. According to metallization on both sides, this product electrical conductivity is considerably improved and the contact surface between the electrodes and the schoopage layer is doubled.
Features
- Pulse duty construction
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
Applications
- Switch mode power supplies
- TV and monitor sets
- Lighting
- Audio/video equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 22.5 mm | |
| Height | 21 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 105 °C | |
| Rated voltage (AC) | 700 V | |
| Rated voltage (DC) | 2.5 kV | |
| Tolerance | ±5 % | |
| Width | 11 mm | |
| Capacity | 22 nF | |
| Design | radial | |
| Length | 26.5 mm | |
| Number of pins | 2 | |
| Dielectric material | PP |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
