MKP1O131006B00KSSD | Wima
MKP film capacitor, 100 nF, ±10 %, 1 kV (DC), PP, 27.5 mm, MKP1O131006B00KSSD
Order No.: 43D748
EAN: 4099879819482
MPN:
MKP1O131006B00KSSD
MKP100.01µF/1000VDC10%RM27.5
Series: MKP 10
Unit Price (€ / pc.)
4.8314 € *
Available: 36 pcs.
Next delivery: 459 pcs. on 2026-03-06
Total Price:
4.83 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8314 €
10 pcs.
4.2602 €
100 pcs.
3.7247 €
459 pcs.
3.4629 €
918 pcs.
3.3201 €
*incl. VAT plus shipping costs
Subject to prior sale

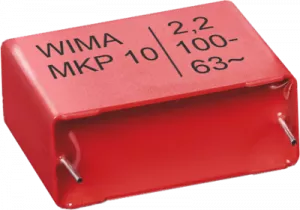

Film capacitor, MKP1O131006B00KSSD, WIMA
The MKP1O131006B00KSSD is a pulse capacitor that consists of a non-metallized dielectric film and an carrier film metallized on both sides acting as electrode. According to metallization on both sides, this product electrical conductivity is considerably improved and the contact surface between the electrodes and the schoopage layer is doubled.
Features
- Pulse duty construction
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
Applications
- Switch mode power supplies
- TV and monitor sets
- Lighting
- Audio/video equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 100 nF | |
| Rated voltage (DC) | 1 kV | |
| Rated voltage (AC) | 600 V | |
| Tolerance | ±10 % | |
| Dielectric material | PP | |
| Design | radial | |
| Grid | 27.5 mm | |
| Number of pins | 2 | |
| Length | 31.5 mm | |
| Width | 11 mm | |
| Height | 21 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 459 pieces |
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
