MKP1J033305I00MD00 | Wima
MKP film capacitor, 330 nF, ±20 %, 630 V (DC), PP, 22.5 mm, MKP1J033305I00MD00
Unit Price (€ / pc.)
1.1424 € *
Standard delivery time from the manufacturer is: 23 Weeks

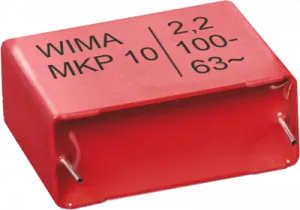

Film capacitor, MKP1J033305I00MD00, WIMA
The MKP1J033305I00MD00 is a pulse capacitor that consists of a non-metallized dielectric film and an carrier film metallized on both sides acting as electrode. According to metallization on both sides, this product electrical conductivity is considerably improved and the contact surface between the electrodes and the schoopage layer is doubled.
Features
- Pulse duty construction
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
Applications
- Switch mode power supplies
- TV and monitor sets
- Lighting
- Audio/video equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric material | PP | |
| Rated voltage (AC) | 400 V | |
| Capacity | 330 nF | |
| max. operating temperature | 105 °C | |
| Length | 26.5 mm | |
| min. operating temperature | -55 °C | |
| Height | 21 mm | |
| Width | 11 mm | |
| Grid | 22.5 mm | |
| Design | radial | |
| Number of pins | 2 | |
| Rated voltage (DC) | 630 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
