MKP1J022204B00KSSD | Wima
MKP film capacitor, 22 nF, ±10 %, 630 V (DC), PP, 15 mm, MKP1J022204B00KSSD
Order No.: 43D706
EAN: 4099879819390
MPN:
MKP1J022204B00KSSD
MKP 10 0.022µF/630VDC 10% RM15
Series: MKP 10
Unit Price (€ / pc.)
0.9163 € *
Available: 125 pcs.
Available in 4 Days: 4,172 pcs. - if ordered today
Total Price:
0.92 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9163 €
10 pcs.
0.5712 €
50 pcs.
0.4641 €
250 pcs.
0.3927 €
1000 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, MKP1J022204B00KSSD, WIMA
The MKP1J022204B00KSSD is a pulse capacitor that consists of a non-metallized dielectric film and an carrier film metallized on both sides acting as electrode. According to metallization on both sides, this product electrical conductivity is considerably improved and the contact surface between the electrodes and the schoopage layer is doubled.
Features
- Pulse duty construction
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
Applications
- Switch mode power supplies
- TV and monitor sets
- Lighting
- Audio/video equipment

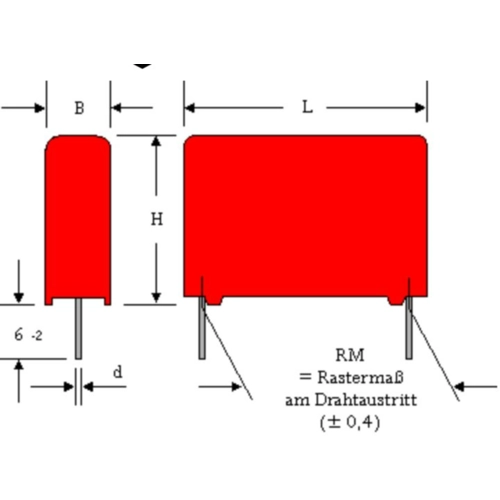

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 5 mm | |
| Rated voltage (AC) | 400 V | |
| Rated voltage (DC) | 630 V | |
| Number of pins | 2 | |
| Length | 18 mm | |
| Design | radial | |
| Dielectric material | PP | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Height | 11 mm | |
| Capacity | 22 nF | |
| Tolerance | ±10 % | |
| Grid | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322500 |
| Original Packaging | Bulk with 2,400 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
