MKP1J022204B00KD00 | Wima
MKP film capacitor, 22 nF, ±10 %, 630 V (DC), PP, 15 mm, MKP1J022204B00KD00
Order No.: 47D7027
EAN: 4099879855312
MPN:
MKP1J022204B00KD00
MKP 10 0.022 µF 630 VDC
Series: MKP 10
Unit Price (€ / pc.)
0.4284 € *
Available in 4 Days: 1,150 pcs. - if ordered today

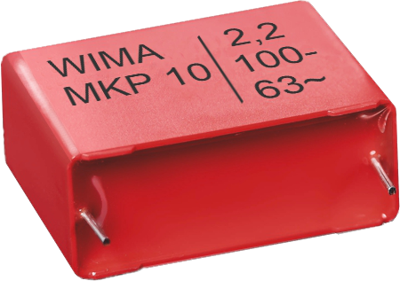

Film capacitor, MKP1J022204B00KD00, WIMA
The MKP1J022204B00KD00 is a pulse capacitor that consists of a non-metallized dielectric film and an carrier film metallized on both sides acting as electrode. According to metallization on both sides, this product electrical conductivity is considerably improved and the contact surface between the electrodes and the schoopage layer is doubled.
Features
- Pulse duty construction
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
Applications
- Switch mode power supplies
- TV and monitor sets
- Lighting
- Audio/video equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 630 V | |
| Rated voltage (AC) | 400 V | |
| Tolerance | ±10 % | |

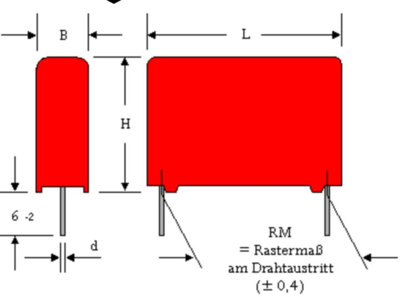

| Design | radial | |
| Width | 5 mm | |
| Height | 11 mm | |
| Dielectric material | PP | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Number of pins | 2 | |
| Length | 18 mm | |
| Capacity | 22 nF | |
| Grid | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
