MKP1J021503F00KJ00 | Wima
MKP film capacitor, 15 nF, ±10 %, 630 V (DC), PP, 10 mm, MKP1J021503F00KJ00
Order No.: 47D6960
EAN: 4099879855305
MPN:
MKP1J021503F00KJ00
MKP 10 0.015 µF 630 VDC
Series: MKP 10
Unit Price (€ / pc.)
0.2523 € *
Standard delivery time from the manufacturer is: 23 Weeks

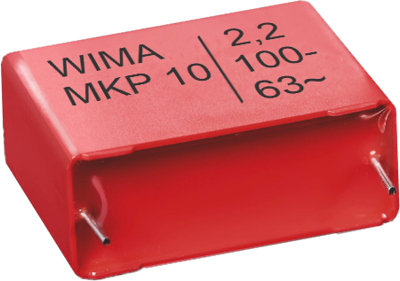

Film capacitor, MKP1J021503F00KJ00, WIMA
The MKP1J021503F00KJ00 is a pulse capacitor that consists of a non-metallized dielectric film and an carrier film metallized on both sides acting as electrode. According to metallization on both sides, this product electrical conductivity is considerably improved and the contact surface between the electrodes and the schoopage layer is doubled.
Features
- Pulse duty construction
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
Applications
- Switch mode power supplies
- TV and monitor sets
- Lighting
- Audio/video equipment

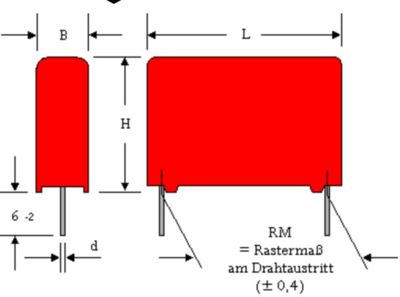

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 5 mm | |
| Rated voltage (AC) | 400 V | |
| Rated voltage (DC) | 630 V | |
| Number of pins | 2 | |
| Length | 13 mm | |
| Design | radial | |
| Dielectric material | PP | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Height | 11 mm | |
| Capacity | 15 nF | |
| Tolerance | ±10 % | |
| Grid | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322500 |
| Original Packaging | Reel with 1,300 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
