GTOMQ05300GF00KS00 | Wima
MKP film capacitor, 30 µF, ±10 %, 1.2 kV (DC), PP, GTOMQ05300GF00KS00
Order No.: 30D564
EAN: 4099879814722
MPN:
GTOMQ05300GF00KS00
GTO MKP 30.0µF/1200VDC 10%
Series: GTO_MKP
Unit Price (€ / pc.)
134.3153 € *
Standard delivery time from the manufacturer is: On Request

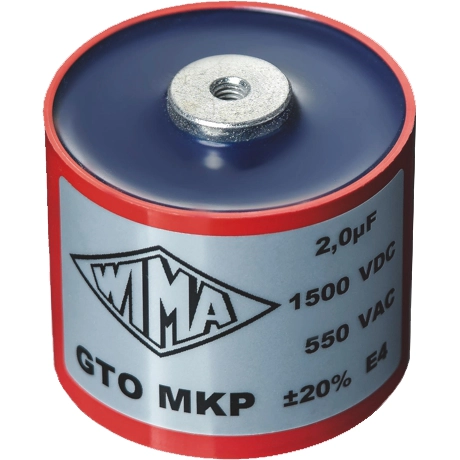

Film capacitor, GTOMQ05300GF00KS00, WIMA
The GTOMQ05300GF00KS00 is a Gate-Turn-Off (GTO) capacitor. This product is especially designed to attenuate voltage spikes on GTO, Thyristors and IGBT (Insulated Gate Bipolar Transistor), is manufactured in dry-type technology with a dielectric of metallized polypropylene film and encapsulated in a cylindrical plastic case sealed with self-extinguishing polyurethane resin.
Features
- Pulse duty construction
- Self-healing
- Internal series connection from 400VAC
- Very low dissipation factor
- Negative capacitance change versus temperature
Applications
- Damping of voltage spikes on GTO-Thyristors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric material | PP | |
| Rated voltage (AC) | 500 V | |
| Capacity | 30 µF | |
| max. operating temperature | 85 °C | |
| Length | 97 mm | |
| min. operating temperature | -55 °C | |
| Design | axial | |
| Rated voltage (DC) | 1.2 kV | |
| Tolerance | ±10 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
