FKS3J014703D00KSSD | Wima

FKS film capacitor, 4.7 nF, ±10 %, 630 V (DC), PET, 10 mm, FKS3J014703D00KSSD

Order No.: 47D4050
EAN: 4099879855190
MPN:
FKS3J014703D00KSSD
FKS 3 4700 pF 630 VDC
Series: FKS_3
FKS3J014703D00KSSD Wima Film Capacitors

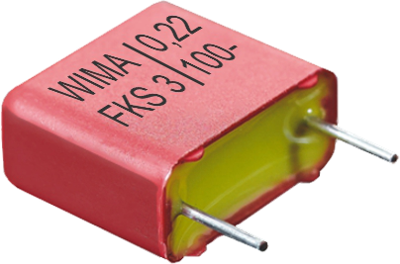

Image may differ
Unit Price (€ / pc.)
0.7497 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2,249.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.7497 €

Film capacitor, FKS3J014703D00KSSD, WIMA

The FKS3J014703D00KSSD is a Film/Foil capacitor. This product construction is mainly used for capacitors with smaller capacitance value, the advantage of this construction principle is the easy contactability of the metal foil electrodes and the good pulse strength. The insulating film chosen is always thicker than theoretically required by the values which are determined from the specific breakdown strength of the material.

Features

  • Pulse duty construction
  • Tinned wire
  • Metal foil
  • Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0

Applications

  • Coupling
  • Decoupling
Technical specifications
Filter Property Value
Grid 10 mm
Tolerance ±10 %
Width 4 mm
max. operating temperature 105 °C
Dielectric material PET
Rated voltage (DC) 630 V
Length 13 mm
Height 9.5 mm
Design radial
Number of pins 2
Rated voltage (AC) 300 V
min. operating temperature -55 °C
Capacity 4.7 nF
Logistics
Property Value
Customs tariff number 85322500
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
