FKS3D013302B00KSSD | Wima
FKS film capacitor, 3.3 nF, ±10 %, 100 V (DC), PET, 7.5 mm, FKS3D013302B00KSSD
Unit Price (€ / pc.)
0.4403 € *
Available in 4 Days: 8,910 pcs. - if ordered today
Total Price:
0.44 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4403 €
10 pcs.
0.3213 €
100 pcs.
0.2701 €
500 pcs.
0.2344 €
1000 pcs.
0.2130 €
*incl. VAT plus shipping costs
Subject to prior sale

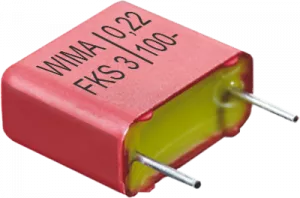

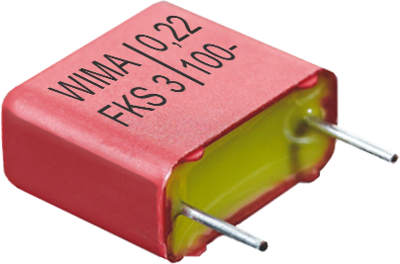

Film capacitor, FKS3D013302B00KSSD, WIMA
The FKS3D013302B00KSSD is a Film/Foil capacitor. This product construction is mainly used for capacitors with smaller capacitance value, the advantage of this construction principle is the easy contactability of the metal foil electrodes and the good pulse strength. The insulating film chosen is always thicker than theoretically required by the values which are determined from the specific breakdown strength of the material.
Features
- Pulse duty construction
- Tinned wire
- Metal foil
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- Coupling
- Decoupling
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 100 V | |
| Number of pins | 2 | |
| Grid | 7.5 mm | |
| Height | 8.5 mm | |
| max. operating temperature | 105 °C | |
| Capacity | 3.3 nF | |
| Design | radial | |
| Tolerance | ±10 % | |
| Dielectric material | PET | |
| Length | 10 mm | |
| min. operating temperature | -55 °C | |
| Width | 3 mm | |
| Rated voltage (AC) | 63 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322500 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
