FKP3J001002B00KSSD | Wima
FKP film capacitor, 100 pF, ±10 %, 630 V (DC), PP, 7.5 mm, FKP3J001002B00KSSD
Unit Price (€ / pc.)
0.4522 € *
Available in 4 Days: 50 pcs. - if ordered today
Total Price:
0.45 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4522 €
10 pcs.
0.3213 €
100 pcs.
0.2761 €
500 pcs.
0.2404 €
1000 pcs.
0.2178 €
*incl. VAT plus shipping costs
Subject to prior sale

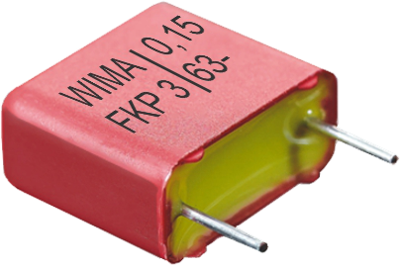

Film capacitor, FKP3J001002B00KSSD, WIMA
The FKP3J001002B00KSSD is a Film/Foil capacitor. This product construction is mainly used for capacitors with smaller capacitance value, the advantage of this construction principle is the easy contactability of the metal foil electrodes and the good pulse strength. The insulating film chosen is always thicker than theoretically required by the values which are determined from the specific breakdown strength of the material.
Features
- Pulse duty construction
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- LC-Filtering
- Oscillating circuits
- Audio equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric material | PP | |
| Rated voltage (DC) | 630 V | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 300 V | |
| max. operating temperature | 105 °C | |
| Grid | 7.5 mm | |
| Number of pins | 2 | |
| Height | 8.5 mm | |
| Tolerance | ±10 % | |
| Width | 3 mm | |
| Length | 10 mm | |
| Design | radial | |
| Capacity | 100 pF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
