FKP2J003301D00JSSD | Wima
FKP film capacitor, 330 pF, ±5 %, 630 V (DC), PP, 5 mm, FKP2J003301D00JSSD
Order No.: 42D8256
EAN: 4099879817426
MPN:
FKP2J003301D00JSSD
FKP 2 330PF/630VDC 5% RM5
Series: FKP 2
Unit Price (€ / pc.)
0.6069 € *
Available: 1,937 pcs.
Available in 4 Days: 1,766 pcs. - if ordered today
Total Price:
0.61 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6069 €
10 pcs.
0.3808 €
50 pcs.
0.2666 €
250 pcs.
0.2237 €
1000 pcs.
0.1916 €
*incl. VAT plus shipping costs
Subject to prior sale

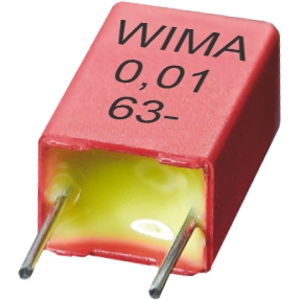

Film capacitor, FKP2J003301D00JSSD, WIMA
The FKP2J003301D00JSSD is a Film/Foil capacitor. This product construction is mainly used for capacitors with smaller capacitance value, the advantage of this construction principle is the easy contactability of the metal foil electrodes and the good pulse strength. The insulating film chosen is always thicker than theoretically required by the values which are determined from the specific breakdown strength of the material.
Features
- Pulse duty construction
- Close tolerances up to ±2.5%
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- LC-Filtering
- Oscillating circuits
- Audio equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 6 mm | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 250 V | |
| Capacity | 330 pF | |
| Width | 4.5 mm | |
| max. operating temperature | 100 °C | |
| Number of pins | 2 | |
| Rated voltage (DC) | 630 V | |
| Grid | 5 mm | |
| Tolerance | ±5 % | |
| Length | 7.2 mm | |
| Design | radial | |
| Dielectric material | PP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bulk with 6,000 pieces |
| Customs tariff number | 85322500 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
