FKP2C022201J00JC00 | Wima

FKP film capacitor, 22 nF, ±5 %, 63 V (DC), PP, 5 mm, FKP2C022201J00JC00

Order No.: 44D2395
EAN: 4099879820563
MPN:
FKP2C022201J00JC00
FKP 2 0.022 µF 63 VDC
Series: FKP 2
FKP2C022201J00JC00 Wima Film Capacitors Image 1
FKP2C022201J00JC00 Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.2856 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
285.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.2856 €

Film capacitor, FKP2C022201J00JC00, WIMA

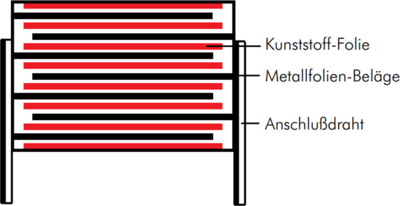

The FKP2C022201J00JC00 is a Film/Foil capacitor. This product construction is mainly used for capacitors with smaller capacitance value, the advantage of this construction principle is the easy contactability of the metal foil electrodes and the good pulse strength. The insulating film chosen is always thicker than theoretically required by the values which are determined from the specific breakdown strength of the material.

Features

  • Pulse duty construction
  • Close tolerances up to ±2.5%
  • Very low dissipation factor
  • Negative capacitance change versus temperature
  • Very low dielectric absorption

Applications

  • Sample and hold
  • Timing
  • LC-Filtering
  • Oscillating circuits
  • Audio equipment
Technical specifications
Filter Property Value
Rated voltage (AC) 40 V
Rated voltage (DC) 63 V
Capacity 22 nF
Length 7.2 mm
Width 7.2 mm
Design radial
Number of pins 2
Grid 5 mm
max. operating temperature 100 °C
Height 8.5 mm
min. operating temperature -55 °C
Tolerance ±5 %
Dielectric material PP
Logistics
Property Value
Customs tariff number 85322500
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
