FKP1U002204B00KSSD | Wima

FKP film capacitor, 220 pF, ±10 %, 2 kV (DC), PP, 15 mm, FKP1U002204B00KSSD

Order No.: 43D8336
EAN: 4099879820020
MPN:
FKP1U002204B00KSSD
FKP 1 220PF/2000VDC 10% RM15
Series: FKP 1
FKP1U002204B00KSSD Wima Film Capacitors

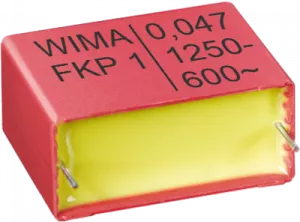

Image may differ
Unit Price (€ / pc.)
0.8806 € *
Available: 577 pcs.
Total Price:
8.81 € *
Price list
Quantity
Price per unit*
10 pcs.
0.8806 €
50 pcs.
0.7735 €
250 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale

Film capacitor, FKP1U002204B00KSSD, WIMA

The FKP1U002204B00KSSD is a pulse capacitor that was developed for extremly high pulse loads. This product has an internal series connection, the metal foil electrodes being combined with a floating electrode metallized on both sides. The metal foil electrodes are safely contacted on both sides of the end surfaces.

Features

  • Self-healing
  • Internal series connection
  • Extremely high pulse duty
  • Very low dissipation factor
  • Negative capacitance change versus temperature

Applications

  • Switch mode power supplies
  • Converter in drives and power electronics
  • Deflection systems in monitors and TV-sets
  • Electronic ballasts
Technical specifications
Filter Property Value
Width 5 mm
Rated voltage (AC) 700 V
Rated voltage (DC) 2 kV
Number of pins 2
Length 18 mm
Design radial
Dielectric material PP
max. operating temperature 105 °C
min. operating temperature -55 °C
Height 11 mm
Capacity 220 pF
Tolerance ±10 %
Grid 15 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85322500
Original Packaging Bulk with 2,400 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
