FKP1O124706B00KSSD | Wima

Name: FKP film capacitor, 47 nF, ±10 %, 1 kV (DC), PP, 27.5 mm, FKP1O124706B00KSSD
Brand: Wima
SKU: 43D8254
Availability: InStock

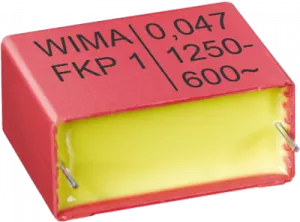

FKP film capacitor, 47 nF, ±10 %, 1 kV (DC), PP, 27.5 mm, FKP1O124706B00KSSD

Order No.: 43D8254

EAN: 4099879819819

MPN:

FKP1O124706B00KSSD

FKP10.047µF/1000VDC10%RM27.5

Series: FKP 1

Unit Price (€ / pc.)

3.4748 € *

Available: 436 pcs.

Available in 4 Days: 602 pcs. - if ordered today

Total Price:

6.95 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film capacitor, FKP1O124706B00KSSD, WIMA

The FKP1O124706B00KSSD is a pulse capacitor that was developed for extremly high pulse loads. This product has an internal series connection, the metal foil electrodes being combined with a floating electrode metallized on both sides. The metal foil electrodes are safely contacted on both sides of the end surfaces.

Features

Self-healing
Internal series connection
Extremely high pulse duty
Very low dissipation factor
Negative capacitance change versus temperature

Applications

Switch mode power supplies
Converter in drives and power electronics
Deflection systems in monitors and TV-sets
Electronic ballasts

Technical specifications

Filter	Property	Value
	Number of pins	2
	max. operating temperature	105 °C
	Width	11 mm
	Rated voltage (DC)	1 kV
	Rated voltage (AC)	600 V
	Height	21 mm
	Design	radial
	Tolerance	±10 %
	min. operating temperature	-55 °C
	Capacity	47 nF
	Length	31.5 mm
	Dielectric material	PP
	Grid	27.5 mm
