FKP1G032206D00KSSD | Wima
FKP film capacitor, 220 nF, ±10 %, 400 V (DC), PP, 27.5 mm, FKP1G032206D00KSSD
Order No.: 43D8216
EAN: 4099879819734
MPN:
FKP1G032206D00KSSD
FKP 1 0.22µF/400VDC 10% RM27.5
Series: FKP 1
Unit Price (€ / pc.)
2.7132 € *
Available in 4 Days: 639 pcs. - if ordered today
Total Price:
2.71 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7132 €
10 pcs.
2.2729 €
100 pcs.
1.9397 €
250 pcs.
1.7612 €
1000 pcs.
1.6065 €
*incl. VAT plus shipping costs
Subject to prior sale

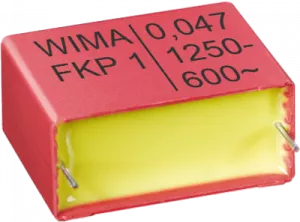

Film capacitor, FKP1G032206D00KSSD, WIMA
The FKP1G032206D00KSSD is a pulse capacitor that was developed for extremly high pulse loads. This product has an internal series connection, the metal foil electrodes being combined with a floating electrode metallized on both sides. The metal foil electrodes are safely contacted on both sides of the end surfaces.
Features
- Self-healing
- Internal series connection
- Extremely high pulse duty
- Very low dissipation factor
- Negative capacitance change versus temperature
Applications
- Switch mode power supplies
- Converter in drives and power electronics
- Deflection systems in monitors and TV-sets
- Electronic ballasts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 400 V | |
| Rated voltage (AC) | 250 V | |
| Tolerance | ±10 % | |
| Design | radial | |
| Width | 13 mm | |
| Height | 24 mm | |
| Dielectric material | PP | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Number of pins | 2 | |
| Length | 31.5 mm | |
| Capacity | 220 nF | |
| Grid | 27.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | DE |
| Original Packaging | Bulk with 378 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
