DCP4N053007ID4KSSD | Wima
MKP film capacitor, 30 µF, ±10 %, 900 V (DC), PP, 37.5 mm, DCP4N053007ID4KSSD
Order No.: 43D8454
EAN: 4099879820167
MPN:
DCP4N053007ID4KSSD
DCLINKMKP430µF/900VDC10%RM37.5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
25.8230 € *
Available: 82 pcs.
Total Price:
25.82 € *
Price list
Quantity
Price per unit*
1 pcs.
25.8230 €
10 pcs.
22.7290 €
84 pcs.
20.1229 €
168 pcs.
19.3494 €
672 pcs.
18.0999 €
*incl. VAT plus shipping costs
Subject to prior sale

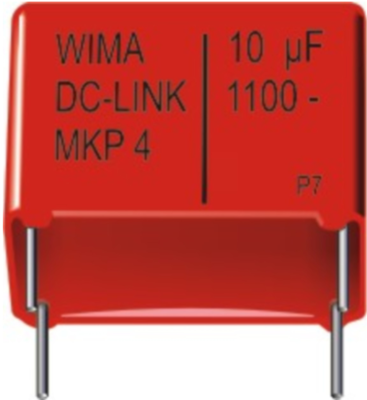

Film capacitor, DCP4N053007ID4KSSD, WIMA
The DCP4N053007ID4KSSD is a DC-Link capacitor. This product is especially designed for applications in high power converter technology, manufactured with a low loss polypropylene dielectric it shows a higher current carrying capability as well as lower dissipation/self-heating at high frequencies compared to electrolytic capacitors.
Features
- Very high capacitance/volume ratio
- Capacitances up to 400 µF
- Excellent self-healing properties
- Very low dissipation factor
- High reliability
Applications
- Power supplies
- Solar inverters
- E-mobility (battery chargers)
- Motor drive & power train
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 30 µF | |
| Rated voltage (DC) | 900 V | |
| Tolerance | ±10 % | |
| Dielectric material | PP | |
| Design | radial | |
| Grid | 37.5 mm | |
| Number of pins | 4 | |
| Length | 41.5 mm | |
| Width | 31 mm | |
| Height | 46 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 84 pieces |
| Customs tariff number | 85322500 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
