DCP4I051506ID2KSSD | Wima

MKP film capacitor, 15 µF, ±10 %, 600 V (DC), PP, 27.5 mm, DCP4I051506ID2KSSD

Order No.: 43D8404
EAN: 4099879820136
MPN:
DCP4I051506ID2KSSD
DCLINKMKP415µF/600VDC10%RM27.5

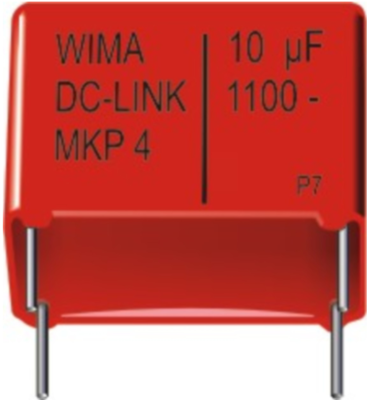

DCP4I051506ID2KSSD Wima Film Capacitors Image 1
DCP4I051506ID2KSSD Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
4.8314 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
1,913.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
396 pcs.
4.8314 €

Film capacitor, DCP4I051506ID2KSSD, WIMA

The DCP4I051506ID2KSSD is a DC-Link capacitor. This product is especially designed for applications in high power converter technology, manufactured with a low loss polypropylene dielectric it shows a higher current carrying capability as well as lower dissipation/self-heating at high frequencies compared to electrolytic capacitors.

Features

  • Very high capacitance/volume ratio
  • Capacitances up to 400 µF
  • Excellent self-healing properties
  • Very low dissipation factor
  • High reliability

Applications

  • Power supplies
  • Solar inverters
  • E-mobility (battery chargers)
  • Motor drive & power train
Technical specifications
Filter Property Value
Grid 27.5 mm
Tolerance ±10 %
Width 17 mm
max. operating temperature 105 °C
Dielectric material PP
Rated voltage (DC) 600 V
Length 31.5 mm
Height 34.5 mm
Design radial
Number of pins 2
min. operating temperature -55 °C
Capacity 15 µF
Logistics
Property Value
Customs tariff number 85322500
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
