WD300 220R 1% (F) | WIDAP
Wirewound resistor, 220 Ω, 300 W, ±1 %, WD300 220R 1% (F)
Unit Price (€ / pc.)
39.0915 € *
Standard delivery time from the manufacturer is: 2 Weeks

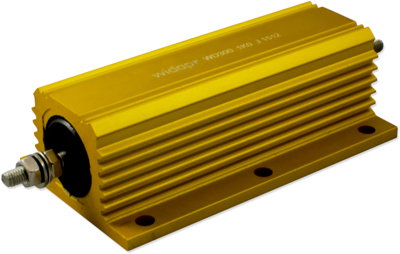

Aluminium housed wire-wound resistor, WD300 220R 1% (F), WIDAP
The WD300 220R 1% (F) is a high quality, high stability aluminium housed power resistor designed for direct heat sink attachment. It has a good electrical stability, reliability and is mechanically very rigid.
Features
- Excellent heat transfers and small dimensions
- Custom terminations
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 220 Ω | |
| Width | 73 mm | |
| nominal load capacity without cooling surface | 75 W | |
| Tolerance | ±1 % | |
| Temperature coefficient | 30 ppm/K | |
| max. operating temperature | 250 °C | |
| Power | 300 W | |
| min. operating temperature | -25 °C | |
| Version | high load wire resistor | |
| Assembly | chassis mounting | |
| Design | chassis | |
| Height | 45 mm | |
| Length | 127 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
