WD300 0R22 5% (J) | WIDAP

Wirewound resistor, 220 mΩ, 300 W, ±5 %

Order No.: 63E4285
EAN: 4099879698711
MPN:
WD300 0R22 5% (J)
Series: WD300
WIDAP
default L
Image may differ
Print
Key Specification:
ohmic resistance 220 mΩ
Tolerance ±5 %
Power 300 W
Design chassis
Assembly chassis mounting
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
36.3426 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Add to Cart
Total Price:
36.34 € *
Price list
Quantity
Price per unit*
2 pcs.
36.3426 €
6 pcs.
35.0336 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

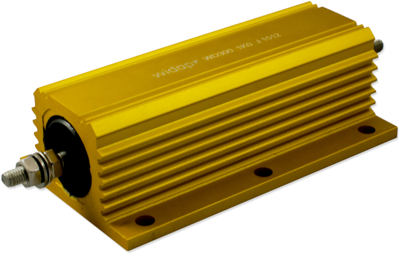

Aluminium housed wire-wound resistor, WD300 0R22 5% (J), WIDAP

The WD300 0R22 5% (J) is a high quality, high stability aluminium housed power resistor designed for direct heat sink attachment. It has a good electrical stability, reliability and is mechanically very rigid.

Features

  • Excellent heat transfers and small dimensions
  • Custom terminations
  • RoHS compliant
Technical specifications
ohmic resistance 220 mΩ
Version high load wire resistor
Design chassis
Width 73 mm
Height 45 mm
Length 127 mm
Power 300 W
max. operating temperature 250 °C
min. operating temperature -25 °C
Assembly chassis mounting
nominal load capacity without cooling surface 75 W
Tolerance ±5 %
Temperature coefficient 60 ppm/K
Show similar products 0
Logistics
Country of origin IN
Customs tariff number 85332100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
ohmic resistance
Unit:
Tolerance
Design
Version
nominal load capacity without cooling surface
Unit:
Width
Unit:
Length
Unit:
Height
Unit:
Assembly
min. operating temperature
max. operating temperature
Power
Unit:
1 item in 10 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
ohmic resistance
Tolerance
Design
Version
nominal load capacity without cooling surface
Width
Length
Height
Assembly
min. operating temperature
max. operating temperature
Power
Wirewound resistor, 330 mΩ, 300 W, ±5 %
Wirewound resistor, 330 mΩ, 300 W, ±5 %
Order No.:
 63E4726
Manufacturer:
 WIDAP
Manufacturer SKU:
 WD300 0R33 5% (J)
Available: 0 pcs. Leadtime: 10 Weeks **
Total Price: 30.12 € *
2 pcs.
30.1189 €
6 pcs.
29.0360 €
330 mΩ
±5 %
chassis
high load wire resistor
75 W
73 mm
127 mm
45 mm
chassis mounting
-25 °C
250 °C
300 W
Wirewound resistor, 220 Ω, 300 W, ±1 %
Wirewound resistor, 220 Ω, 300 W, ±1 %
Order No.:
 63E4739
Manufacturer:
 WIDAP
Manufacturer SKU:
 WD300 220R 1% (F)
Available: 0 pcs. Leadtime: 10 Weeks **
Total Price: 38.07 € *
2 pcs.
38.0681 €
6 pcs.
36.6996 €
220 Ω
±1 %
chassis
high load wire resistor
75 W
73 mm
127 mm
45 mm
chassis mounting
-25 °C
250 °C
300 W
Wirewound resistor, 5 Ω, 300 W, ±5 %
Wirewound resistor, 5 Ω, 300 W, ±5 %
Order No.:
 63E4297
Manufacturer:
 WIDAP
Manufacturer SKU:
 WD300 5R0 1%(F)
Available: 0 pcs. Leadtime: 10 Weeks **
Total Price: 38.07 € *
2 pcs.
38.0681 €
6 pcs.
36.6996 €
5 Ω
±5 %
chassis
high load wire resistor
75 W
73 mm
127 mm
45 mm
chassis mounting
-25 °C
250 °C
300 W
Wirewound resistor, 220 mΩ, 300 W, ±5 %
Wirewound resistor, 220 mΩ, 300 W, ±5 %
Order No.:
 63E4285
Manufacturer:
 WIDAP
Manufacturer SKU:
 WD300 0R22 5% (J)
Available: 0 pcs. Leadtime: 10 Weeks **
Total Price: 36.34 € *
2 pcs.
36.3426 €
6 pcs.
35.0336 €
220 mΩ
±5 %
chassis
high load wire resistor
75 W
73 mm
127 mm
45 mm
chassis mounting
-25 °C
250 °C
300 W
Wirewound resistor, 10 Ω, 300 W, ±1 %
Wirewound resistor, 10 Ω, 300 W, ±1 %
Order No.:
 63E4733
Manufacturer:
 WIDAP
Manufacturer SKU:
 WD300 10R 1% (F)
Available: 0 pcs. Leadtime: 10 Weeks **
Total Price: 38.07 € *
2 pcs.
38.0681 €
6 pcs.
36.6996 €
10 Ω
±1 %
chassis
high load wire resistor
75 W
73 mm
127 mm
45 mm
chassis mounting
-25 °C
250 °C
300 W
Wirewound resistor, 1 Ω, 300 W, ±1 %
Wirewound resistor, 1 Ω, 300 W, ±1 %
Order No.:
 63E4737
Manufacturer:
 WIDAP
Manufacturer SKU:
 WD300 1R0 5% (J)
Available: 0 pcs. Leadtime: 10 Weeks **
Total Price: 36.34 € *
2 pcs.
36.3426 €
6 pcs.
35.0336 €
1 Ω
±1 %
chassis
high load wire resistor
75 W
73 mm
127 mm
45 mm
chassis mounting
-25 °C
250 °C
300 W
Wirewound resistor, 820 mΩ, 300 W, ±5 %
Wirewound resistor, 820 mΩ, 300 W, ±5 %
Order No.:
 63E4731
Manufacturer:
 WIDAP
Manufacturer SKU:
 WD300 0R82 5% (J)
Available: 0 pcs. Leadtime: 10 Weeks **
Total Price: 29.99 € *
2 pcs.
29.988 €
820 mΩ
±5 %
chassis
high load wire resistor
75 W
73 mm
127 mm
45 mm
chassis mounting
-25 °C
250 °C
300 W
Wirewound resistor, 8.2 Ω, 300 W, ±5 %
Wirewound resistor, 8.2 Ω, 300 W, ±5 %
Order No.:
 63E4299
Manufacturer:
 WIDAP
Manufacturer SKU:
 WD300 8R2 1% (F)
Available: 0 pcs. Leadtime: 10 Weeks **
Total Price: 32.99 € *
2 pcs.
32.9868 €
8.2 Ω
±5 %
chassis
high load wire resistor
75 W
73 mm
127 mm
45 mm
chassis mounting
-25 °C
250 °C
300 W
Wirewound resistor, 33 Ω, 300 W, ±1 %
Wirewound resistor, 33 Ω, 300 W, ±1 %
Order No.:
 63E4746
Manufacturer:
 WIDAP
Manufacturer SKU:
 WD300 33R 1% (F)
Available: 0 pcs. Leadtime: 10 Weeks **
Total Price: 31.54 € *
2 pcs.
31.5350 €
6 pcs.
30.4045 €
33 Ω
±1 %
chassis
high load wire resistor
75 W
73 mm
127 mm
45 mm
chassis mounting
-25 °C
250 °C
300 W
Wirewound resistor, 56 Ω, 300 W, ±1 %
Wirewound resistor, 56 Ω, 300 W, ±1 %
Order No.:
 63E4751
Manufacturer:
 WIDAP
Manufacturer SKU:
 WD300 56R 1% (F)
Available: 0 pcs. Leadtime: 10 Weeks **
Total Price: 34.62 € *
2 pcs.
34.6171 €
56 Ω
±1 %
chassis
high load wire resistor
75 W
73 mm
127 mm
45 mm
chassis mounting
-25 °C
250 °C
300 W
*incl. VAT plus shipping costs
**Subject to prior sale
