WD10 68R 1% (F) | WIDAP

Wirewound resistor, 68 Ω, 15 W, ±1 %, WD10 68R 1% (F)

Order No.: 63E4349
EAN: 4099879699046
MPN:
WD10 68R 1% (F)
Series: WD10
WIDAP

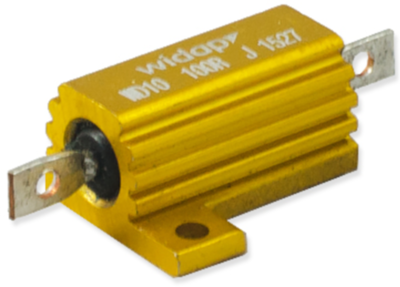

WD10 68R 1% (F) WIDAP Wirewound Resistors
Image may differ
Unit Price (€ / pc.)
2.2967 € *
Available: 71 pcs.
Leadtime: 10 Weeks **
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
25 pcs.
1.9516 €
100 pcs.
1.8088 €
250 pcs.
1.7017 €
1000 pcs.
1.5589 €
*incl. VAT plus shipping costs
**Subject to prior sale

Aluminium housed wire-wound resistor, WD10 68R 1% (F), WIDAP

The WD10 68R 1% (F) is a high quality, high stability aluminium housed power resistor designed for direct heat sink attachment. It has a good electrical stability, reliability and is mechanically very rigid.

Features

  • Excellent heat transfers and small dimensions
  • Custom terminations
  • RoHS compliant
Technical specifications
ohmic resistance 68 Ω
Version high load wire resistor
Design chassis
Width 21 mm
Height 11 mm
Length 20.1 mm
Power 15 W
max. operating temperature 250 °C
min. operating temperature -25 °C
Assembly chassis mounting
nominal load capacity without cooling surface 8 W
Tolerance ±1 %
Temperature coefficient 60 ppm/K
Logistics
Country of origin IN
Customs tariff number 85332100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
