WD10 2R0 1% (F) | WIDAP

Wirewound resistor, 2 Ω, 15 W, ±1 %, WD10 2R0 1% (F)

Order No.: 63E4328
EAN: 4099879698919
MPN:
WD10 2R0 1% (F)
Series: WD10
WD10 2R0 1% (F) WIDAP Wirewound Resistors

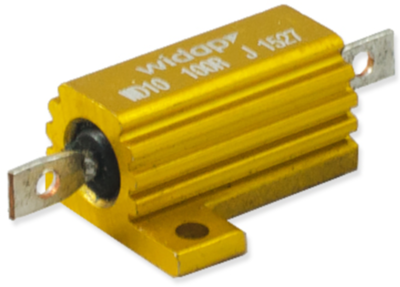

Image may differ
Unit Price (€ / pc.)
1.7612 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
493.14 € *
*incl. VAT plus shipping costs
**Subject to prior sale
280 pcs.
1.7612 €

Aluminium housed wire-wound resistor, WD10 2R0 1% (F), WIDAP

The WD10 2R0 1% (F) is a high quality, high stability aluminium housed power resistor designed for direct heat sink attachment. It has a good electrical stability, reliability and is mechanically very rigid.

Features

  • Excellent heat transfers and small dimensions
  • Custom terminations
  • RoHS compliant
Technical specifications
Temperature coefficient 60 ppm/K
nominal load capacity without cooling surface 8 W
Assembly chassis mounting
Width 17 mm
Height 9 mm
Power 15 W
Length 20.1 mm
Version high load wire resistor
Design chassis
min. operating temperature -25 °C
Tolerance ±1 %
max. operating temperature 250 °C
ohmic resistance 2 Ω
Logistics
Country of origin IN
Customs tariff number 85332100
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
