634 450 55 | Werma

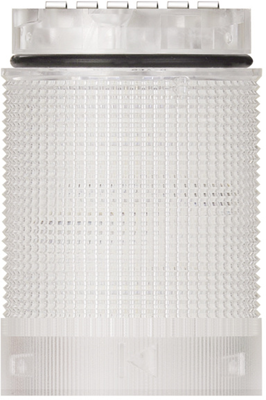

Permanent light, Ø 40 mm, turquoise/purple/white/blue/green/yellow/red, 24 V AC/DC, IP66
Active
Product by Werma at Bürklin Elektronik
LED permanent beacon element.
Signal and alarm beacons, type KombiSIGN 40
Operating voltage: 24 VUC. Dome/socket material: PC. Useful life: 50000 h. Degree of protection: IP 66. Operating temperatures: - 30 to +60 °C. Dimensions: (D x H) 40 x 58.6 mm.
Technical attributes (type, current consumption, dome color, light color): 634 450 55, 60 mA, transparent, multicolor
| Version | LED permanent light | |
| diameter | 40 mm | |
| Farbe der Beleuchtung | turquoise/purple/white/blue/green/yellow/red | |
| Colour | clear | |
| Height | 59 mm | |
| Rated current | 0.06 A | |
| Degree of protection (IP) | IP66 | |
| Voltage | 24 V AC/DC |
| Country of origin | DE |
| Customs tariff number | 85318070 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
