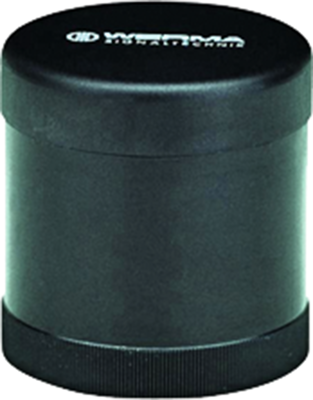

844 126 55 | Werma
Siren element, 50 Hz, 100 dB, 24 V AC/DC, 80 mA, green
Active
Product by Werma at Bürklin Elektronik
Corresponding acoustic elements for KombiSIGN 70, type 844.
Can be combined with the signal elements described above; Degree of protection: IP 54, acoustic elements type 84412355 IP 40, type 84412655 with 8 sounds and adjustable volume.
Technical attributes (type, version, color, with/without lamp): 844.126.55, siren element, 100 dB, 24 V AC/DC
| Version | siren element | |

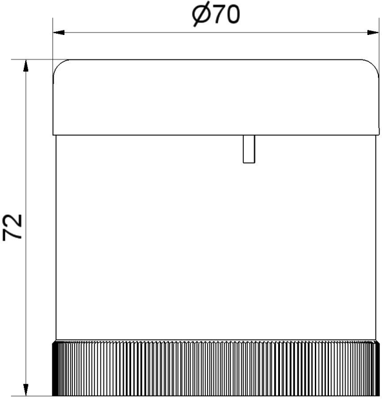

| Installation diameter | 70 mm | |
| Colour | green | |
| Frequency | 50 Hz | |
| Height | 72 mm | |
| Rated current | 0.08 A | |
| Sound pressure level | 100 db | |
| Voltage | 24 V AC/DC |
| Country of origin | DE |
| Customs tariff number | 85318070 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Lead titanium zirconium oxide |
