635 800 75 | Werma

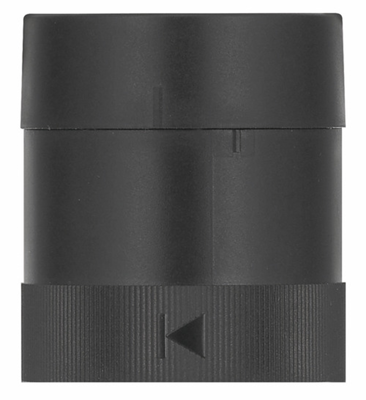

Siren element, 50 Hz, 85 dB, 24 V AC/DC, 50 mA, black
Unit Price (€ / pc.)
46.3862 € *
Available: 2 pcs.
Leadtime: On Request **
Total Price:
46.39 € *
Price list
Quantity
Price per unit*
1 pcs.
46.3862 €
5 pcs.
43.5897 €
15 pcs.
41.9356 €
50 pcs.
40.0673 €
*incl. VAT plus shipping costs
**Subject to prior sale
Buzzer elements, type KombiSIGN 40 2-Ton Sirene.
Operating voltage: 24 V AC/DC. Current consumption: 80 mA. Sound pressure level: 85dB. Sound mode: permanent/pulse. Sound frequency: approx. 2900 Hz. Material dome/socket: PC. Useful life: 5000 h. Degree of protection: IP 66. Operating temperatures: –30 to +60 °C. Dimensions: (D x H) 40 x 45 mm.
Technical attributes (type, color): 635 800 75, black
Technical specifications
| Version | buzzer element | |
| Colour | black | |
| Frequency | 50 Hz | |
| Rated current | 50 mA | |
| Resonance frequency | 2900 Hz | |
| Sound pressure level | 85 db | |
| Voltage | 24 V AC/DC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85318040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Lead titanium zirconium oxide |
