635 700 75 | Werma

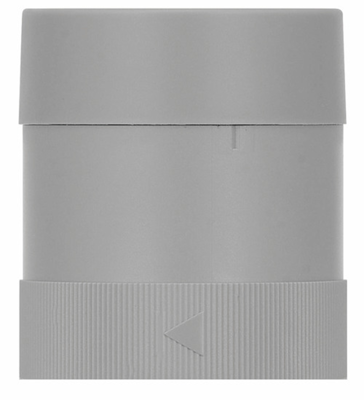

Siren element, 50 Hz, 85 dB, 24 V AC/DC, 80 mA, gray, 635 700 75

Order No.: 32M4096
EAN: 4049787038635
MPN:
635 700 75
635.700.75
Series: KombiSIGN 40
635 700 75 Werma Acoustic Signal Transmitters
Image may differ
Unit Price (€ / pc.)
40.9003 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
40.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
40.9003 €

Buzzer elements, type KombiSIGN 40 2-Ton Sirene.

Operating voltage: 24 V AC/DC. Current consumption: 80 mA. Sound pressure level: 85dB. Sound mode: permanent/pulse. Sound frequency: approx. 2900 Hz. Material dome/socket: PC. Useful life: 5000 h. Degree of protection: IP 66. Operating temperatures: –30 to +60 °C. Dimensions: (D x H) 40 x 45 mm.

Technical attributes (type, color): 635 700 75, gray

Technical specifications
Filter Property Value
Voltage 24 V AC/DC
Rated current 80 mA
Version buzzer element
Frequency 50 Hz
Resonance frequency 2900 Hz
Sound pressure level 85 db
Colour gray
Logistics
Property Value
Country of origin DE
Customs tariff number 85318040
Compliance
Property Value
Substance description Lead, Lead titanium zirconium oxide
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
