111 000 55 | Werma

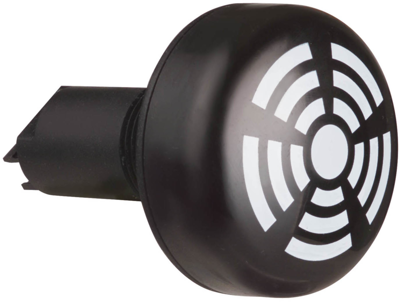

Built-in buzzer, 80 dB, 24 VDC, 25 mA, black
Unit Price (€ / pc.)
93.6411 € *
Available: 0 pcs.
Leadtime: On Request **
Acoustic Signal Transmitter, 111 000 55, Werma
Electr. Buzzer EM Contin/pulse 24VDC BK
FEATURES
- Electronic buzzer for the 22.5 mm panel and switch gear programme
- Simple conneciton via plug connection
- Positive and negative control logic
- Continuous or pulse tone can be triggered externally
Technical Data
- Resonant frequency: 2800 Hz
- Colour: black
- Sound pressure level: 80 dB
- Installation diameter: 50 mm
Technical specifications
| Version | buzzer | |
| Installation diameter | 22.5 mm | |
| Colour | black | |
| Rated current | 25 mA | |
| Resonance frequency | 2800 Hz | |
| Sound pressure level | 80 db | |
| Voltage | 24 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85311095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Lead titanium zirconium oxide |
