LRMAM1206R02FT5 | Welwyn

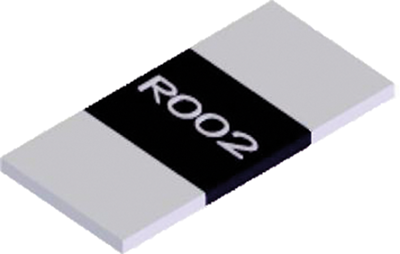

Resistor, metal alloy, SMD 1206 (3216), 20 mΩ, 1 W, ±1 %, LRMAM1206R02FT5
Unit Price (€ / pc.)
0.1452 € *
Available: 250 pcs.
Leadtime: 40 Weeks **
Total Price:
14.52 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1452 €
500 pcs.
0.1226 €
1000 pcs.
0.1131 €
5000 pcs.
0.1047 €
10000 pcs.
0.0988 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD precision resistors, 1.0 % tolerance, type TT electronics/Welwyn LRMA.
Suitable for use as current measuring resistor; Tolerance: 1.0 %. Insulation resistance: min. 100 Mohm. Ambient temperatures: –55 to +170 °C. Certifications: AEC-Q200. Sliding scale prices are valid exclusively for the quantity per resistance value ordered.
Size 1206.
Power: 1.0 W. Overload rating: 5.0 W. Temperature coefficient: ±50 ppm/C°. Dimensions: L 3.2, W 1.6, H 0.6 mm.
Technical attributes (type, resistance value, temperature coefficient (TC)): 0R02, TC ±50 ppm/C°
Technical specifications
| ohmic resistance | 20 mΩ | |
| Design | SMD 1206 (3216) | |
| Width | 1.6 mm | |
| Height | 0.6 mm | |
| Length | 3.2 mm | |
| Power | 1 W | |
| max. operating temperature | 170 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | metal alloy | |
| Temperature coefficient | ±50 ppm/K |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85331000 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
