DSC2512-2R0JT18 | Welwyn

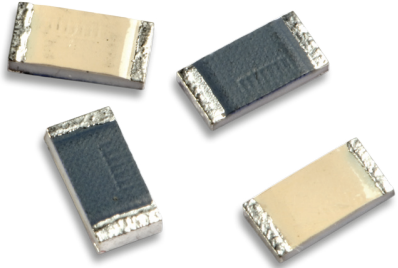

Resistor, thick film, SMD 2512 (6330), 2 Ω, 1.5 W, ±5 %, DSC2512-2R0JT18
Order No.: 74E8523
EAN: 4099879218759
MPN:
DSC2512-2R0JT18
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.4518 € *
Standard delivery time from the manufacturer is: 20 Weeks
Resistor, DSC2512-2R0JT18, WELWYN
The DSC2512-2R0JT18 is a double-sided chip resistor wth two parallel resistance elements in a single chip.
Features
- Excellent pulse withstand performance
- Laser trimmed up to 0.5% tolerance
- Enhanced working voltage
- Enhanced power rating
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 2 Ω | |
| Tolerance | ±5 % | |
| Power | 1.5 W | |
| Design | SMD 2512 (6330) | |
| Temperature coefficient | ±200 ppm/K | |
| Technology | thick film | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 155 °C | |
| Length | 6.5 mm | |
| Width | 3 mm | |
| Height | 0.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 1,800 pieces |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
