XT AX | Weller

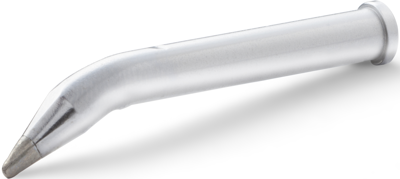

Name: Soldering tip, Chisel shaped, Ø 6 mm, (T x W) 0.7 x 1.6 mm, XT AX
Brand: Weller
SKU: 03L1854
Price: 11.54 EUR
Availability: InStock

Soldering tip, Chisel shaped, Ø 6 mm, (T x W) 0.7 x 1.6 mm, XT AX

Order No.: 03L1854

EAN: 4099891391973

MPN:

XT AX

T0054474399

Series: XT

Image may differ

Key Specification:

Version soldering tip

Peak type Chisel shaped

Suitable for WP 120, WXP 120

diameter 6 mm

Thickness 0.7 mm

Show 36 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

11.5430 € *

Available: 14 pcs.

Leadtime: 1 Week **

Total Price:

11.54 € *

Price list

Quantity

Price per unit*

1 pcs.

11.5430 €

5 pcs.

10.9718 €

10 pcs.

10.4244 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Soldering tip, T0054474399, Weller

Soldering tip, flacher chisel, Ø 1,6 mm, 30°

Features

XT Tips for WXP WXP 120/ WP 120 soldering iron
For soldering tasks with high heat requirements and large solder joints
For maximum performance

Technical specifications

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	BA
Customs tariff number	85159080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
