WT 1012 (WT 1/WSP 80/WSR 201) | Weller
1-Channel soldering station, WT Series, Weller WT 1012 (WT 1/WSP 80/WSR 201), 95 W, 230 V
Active
Product by Weller at Bürklin Elektronik

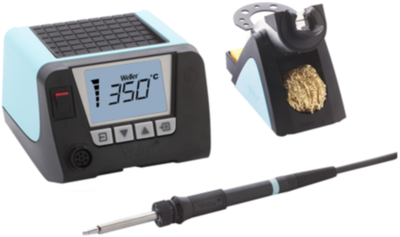

1-Channel Soldering Station WT 1012 Set from Weller
- Powerful 1-channel supply unit, 95W
- Soldering iron WSP 80
- Soldering tip LT B and safety rest WSR 201
- Intuitive use thanks to clear menu structure
- Stackable for smaller footprint
- Backlit LCD display
- High performance and functionality - many connectable tools
- Automatic standby of tool thanks to integrated acceleration sensor in the tool
- Tip family: LT
Technical Data
Voltage: 230 V, 50/60 Hz
Power: 95 W
Temperature range (depends on tool): 50 - 550°C
Display: LCD / Backlit
WT compatible
| Number of outputs | 1 | |
| Version | soldering station | |
| ESD protection | Yes | |
| Power | 95 W | |
| max. operating temperature | 450 °C | |
| min. operating temperature | 50 °C | |
| Voltage | 230 V | |
| Connector | Type-C plug |
| Country of origin | MX |
| Customs tariff number | 85151100 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
