WT 1 | Weller

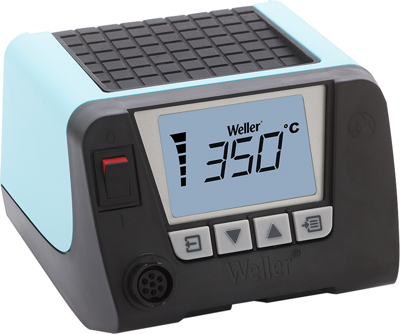

1-Channel supply unit, WT Series, Weller WT 1, 95 W, 230 V
Product by Weller at Bürklin Elektronik
1-Channel Power Unit, 90 W / 230 V, WT 1.
- High performance and functionality - many connectable tools
- Automatic standby of tool thanks to integrated acceleration sensor in the tool
- Housing cover useable as storage
- High productivity (Power unit with 1 channel, 95 W)
- Intuitive use thanks to clear menu structure
- Reduced footprint thanks to stackability
- Grafical backlit LC-Display
Technical Data:
Voltage: 230 V, 50/60 Hz
Power: 95 W
Display: LCD
Temperature range (depends on tool): 50 - 550 °C
WT compatible
| Number of outputs | 1 | |
| Version | supply unit | |
| ESD protection | Yes | |
| Power | 95 W | |
| max. operating temperature | 450 °C | |
| min. operating temperature | 50 °C | |
| Voltage | 230 V | |
| Connector | Type-C plug |
| Country of origin | MX |
| Customs tariff number | 85151100 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
