WS 81 | Weller
1-Channel soldering station, WS Series, Weller WS 81, 95 W, 230 V
Active
Product by Weller at Bürklin Elektronik

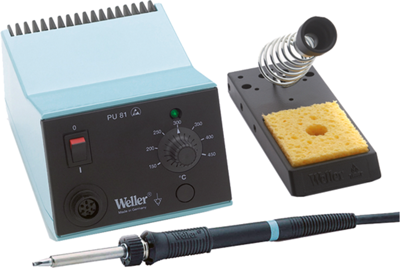

Soldering station, Weller WS 81
Includes the supply unit PU 81 (80 W/230 V), soldering tool WSP 80 (80 W/24 V) and WPH 80 holder.
Features: Electronic analog control loop, antistatic case. Safety class 1, linear temperature adjustment from +150 °C to +450 °C by means of rotary potentiometer, automatic tool detection, supports the connection of all SL and Temtronic series up to 80 W, tolerance ±2.0 % of the end value, with potential equalization (factory state hard-wired to ground), visual control monitoring by means of LED, with safety rack for soldering tools.
Dimensions LxWxH: 166 x 115 x 101 mm
Corresponding soldering tips: LT series
T0053250699, soldering station WS 81
| Number of outputs | 1 | |
| Version | soldering station | |
| ESD protection | Yes | |
| Power | 95 W | |
| max. operating temperature | 450 °C | |
| min. operating temperature | 150 °C | |
| Voltage | 230 V | |
| Connector | Type-F plug |
| Country of origin | DE |
| Customs tariff number | 85151100 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
