WR 3000M (HAP200/DSX80/WP80) | Weller
3-Channel rework station, WR Series, Weller WR 3000M (HAP200/DSX80/WP80), 360 W, 230 V
As a private customer, you can buy this item as soon as we have it back in stock.

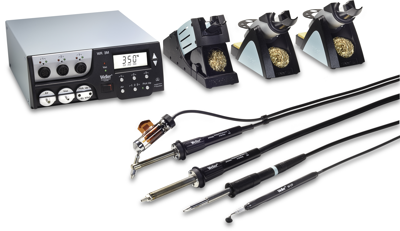

Supply unit for soldering and desoldering, Weller WR 3000M with inline desoldering tool DXV 80 / type WR 3000M Set
Multi-digital supply unit for simultaneous operation of 3 functions: soldering, desoldering (+50 to +450 °C) and hot air (+50 to +550 °C), with LCD, automatic tool detection, integrated vacuum channel for pick-up, USB port, all high-speed Micro-Tools can be connected (e.g. WMRP and WMRT), antistatic housing.
Pump (intermittent operation 30/30 s): max. - 0.7 bar
Flow rate: 18 l/min. (hot air max. 15 l/min.)
Scope of delivery:
- supply unit WR 3M (400 W/230 V)
- hot-air soldering iron HAP 200 (200 W/24 V)
- 2 x comfort rack WDH 30 (for HAP 200 and DSX 80)
- desoldering tool DSX 80 (80 W/24 V) with vacuum nozzle DX 113HM
- soldering tool WP 80 (80 W/24 V) with soldering tip LT B
- switched comfort rack WDH 10T
- vacuum pipette WVP
- USB cable and comprehensive software
| Filter | Property | Value |
|---|---|---|
| Version | rework station | |
| Power | 360 W | |
| Number of outputs | 3 | |
| min. operating temperature | 50 °C | |
| max. operating temperature | 550 °C | |
| ESD protection | Yes | |
| Connector | type F plug | |
| Voltage | 230 V |
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85151990 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
