WE1010 LTD BLACK EDITION + ET TIP SET | Weller
1-Channel soldering station incl. ET soldering tip kit, WE Series, Weller WE1010 LTD BLACK EDITION + ET TIP SET, 70 W, 230 VAC
Order No.: 11L650
EAN: 4099891984373
MPN:
WE1010 LTD BLACK EDITION + ET TIP SET
T0053298392 + T0054104699
Series: WE
Unit Price (€ / pc.)
202.181 € *
Available: 4 pcs.

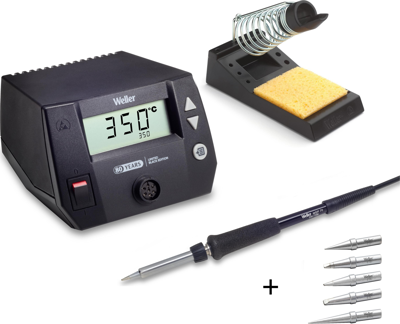

Soldering station, WE1010 LIMITED BLACK EDITION incl. ET soldering tip kit, Weller
The Weller WE1010 soldering station is an easy-to-use solution for professionals and hobbyists. It offers digital control with an LCD screen, temperature stability of +/- 2°C (+/- 4°F) and an ergonomic soldering iron. Toolless tip change and heat resistant silicone cable make it ideal for electronic repairs and prototyping.
Features

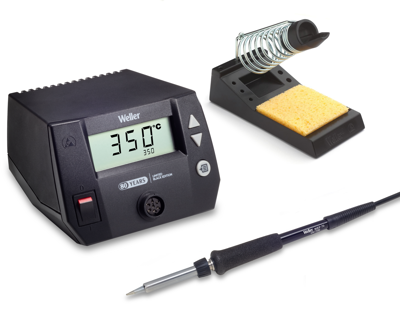

- Power unit, 1 channel with soldering iron WEP 70 and safety rest PH 70
- 70 W solder iron with ergonomic handle and providing toolless tip change
- Esd safe station iron and heat-resistant silicone cable for safe handling
- Standby mode and auto setback conserves energy, protects equipment
- Password-protected to preserve settings
- Change hot tips out by hand by twisting the plastic knurled nut on the soldering pencil without an additional tool

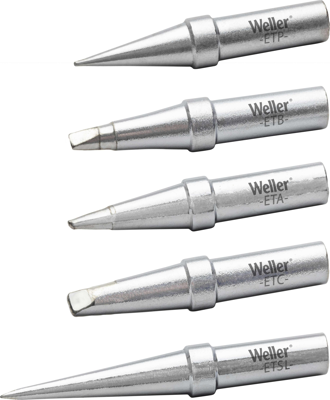

- ET soldering tip set incl. ETA, ETB, ETC, ETP, ETSL (5 pcs.)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | 100 °C | |
| Number of outputs | 1 | |
| Voltage | 230 VAC | |
| Version | soldering station incl. ET soldering tip kit | |
| Power | 70 W | |
| max. operating temperature | 450 °C | |
| ESD protection | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85151100 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
