T0053298391 | Weller
1-Channel soldering station and ZeroSmog Shield kit, WE Series, Weller T0053298391, 85 W, 230 V
Unit Price (€ / pc.)
316.54 € *
Available: 5 pcs.

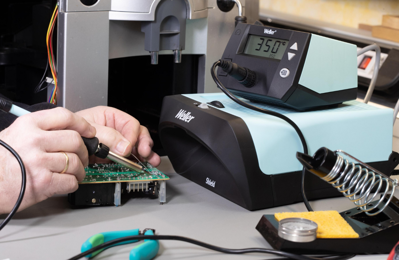

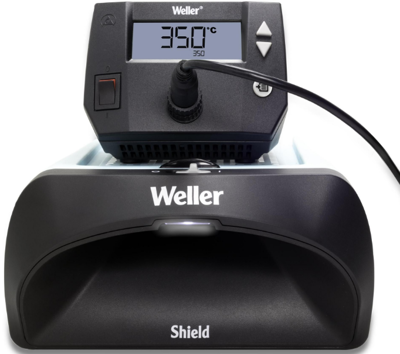

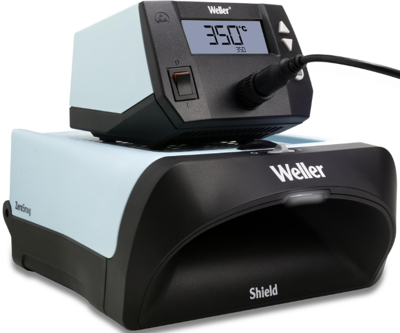

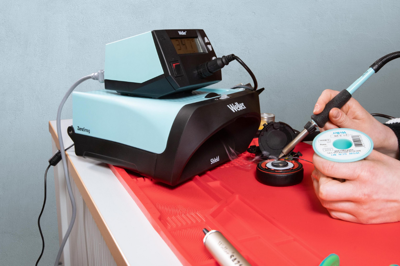

Soldering station and ZeroSmog Shield kit, WE1010NAS, Weller
For a seamless and health-conscious soldering experience, WE1010NAS soldering station with the new ZeroSmog Shield single filtration unit. This easy-to-use soldering bundle not only ensures precision in your soldering projects, but also prioritizes your health. The advanced filtration system efficiently captures and removes harmful fumes and particles, protecting the operator‘s respiratory health. With adjustable temperature control and an ergonomic design, this soldering station offers ease of use, making it ideal for beginners and seasoned professionals alike.
Features
- User-friendly operation
- Optimal health protection
- Single user eco-system
- Suitable for a wide range of prosumer and professional soldering tasks
Features ZeroSmog Shield
- Compact filter: E10 EPA / activated carbon foam
- Max. Vacuum: 285 Pa
- Max. Delivery rate: 26 m³/h
- Noise level at a distance of 1 m: 50 dBA at max. speed
- Dimensions L x W x H: 269.5 x 212 x 110 mm
- Voltage: 100-240 VAC 50/60 Hz
- Operating voltage: 24 VDC
- Power: 10 W
- Weight: 2 kg
- Protection class III
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 450 °C | |
| min. operating temperature | 100 °C | |
| ESD protection | Yes | |
| Voltage | 230 V | |
| Number of outputs | 1 | |
| Power | 85 W | |
| Version | soldering station |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85151100 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
