9537470000 | Weidmüller
Through terminal block, screw connection, 0.5-6.0 mm², 2 pole, 41 A, 6 kV, dark beige, 9537470000
Unit Price (€ / pc.)
4.6410 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6410 €
10 pcs.
4.3197 €
50 pcs.
3.8913 €
*incl. VAT plus shipping costs
**Subject to prior sale

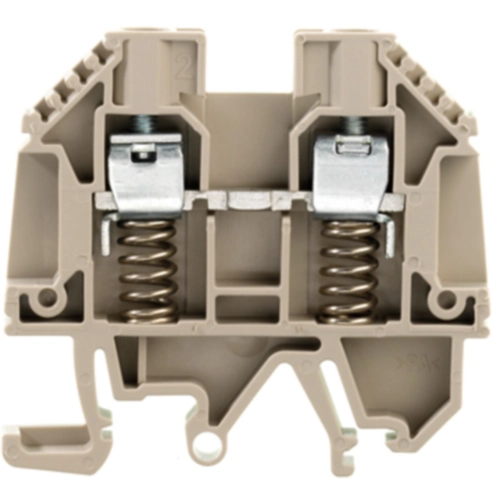

Feed-through terminal, 9537470000, Weidmüller
Feed-through modular terminal block, screw connection, 6 mm², 630 V, 41 A, number of connections: 2, TS 32, TS 35, dark beige
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | through terminal block | |
| AWG cross-section | AWG 20 to 8 | |
| Rated Voltage | 630 V | |
| Rated surge voltage | 6 kV | |
| Width | 7.9 mm | |
| Colour | dark beige | |
| Height | 60 mm | |
| Length | 51.1 mm | |
| Cable cross-section | 0.5-6.0 mm² | |
| Rated current | 41 A | |
| Pin number | 2 pole | |
| Degree of soiling | 2 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
